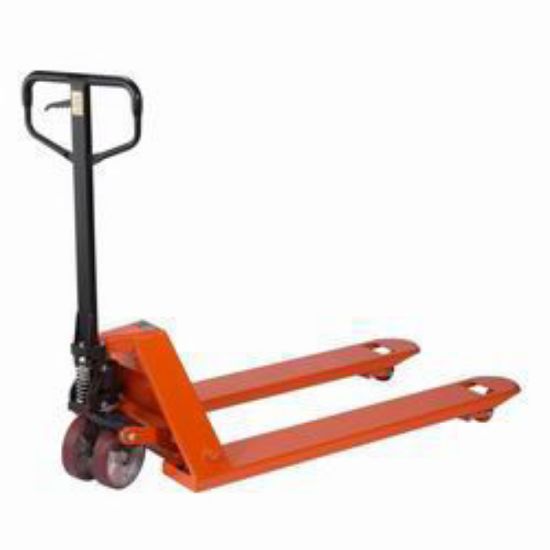

27X48 Pallet Jack 5500LB Capacity

27X48 Pallet Jack 5500LB Capacity

Features:

• Full hydraulic system.Bullet connection between steering shaft and pump piston.It is convenient to replace the rear wheel.
• Easy to maneuver with 210 degrees turning radius.
• Special lowering valve to control the trucks durable.
• Number of pump strokes-10.Lift height per stroke:12mm.
• Reliable oil leak-proof hydraulic system.
• 12 lubrication grease nipples on all movable parts for easy maintenance.
• Adjustable pump cap ensure a long service life.
• Reinforced for added strength of load capacity.
• Ergonomic Large Rubber handle with three control lever.

Main specifications:

• Capacity Q(kg) : 2500
• Service weight kg : 65-80
• Steering wheel mm : f200 f180
• Fork wheel mm:  f80 f74
• Max. lift height h3(mm):  115
• Total height h14(mm) : 1224
• Lowered fork height h13(mm):  85
• Overall length l1(mm):  1533/1603
• Fork dimensions s/e/: l 45/160/1150(1100/1220)
• Distance between fork-arms b5(mm): 520/550/685
• Ground clearance, centre of wheelbase m2 (mm): 40 30
• Aisle width for pallets 1000x1200 crossways Ast(mm) 1733/1803
• Aisle width for pallets 800x1200 lengthways Ast(mm) 1783/1803
• Turning radius Wa(mm) 1266/1336
